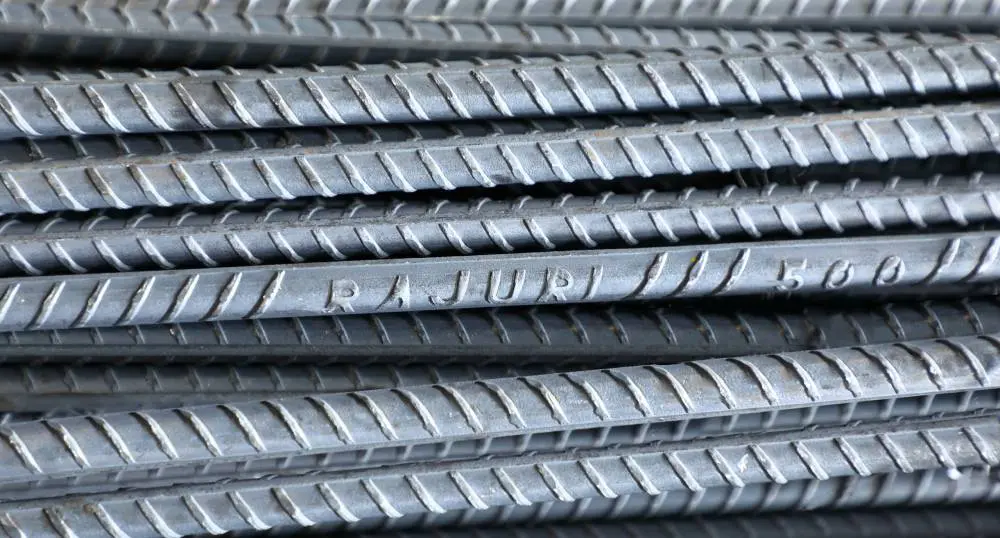

Rajuri Fe 500

Rajuri 500 Bars are reputed for their unique ductility and corrosion-resistant properties.

As the manufacturing process utilizes HSE Thermex technology from Germany, it has elongation values that give it excellent bend properties.

The bars are strongly corrosion-resistant because the carbides that commonly cause corrosion do not form because of controlled water cooling. Improved corrosion resistance is also a result of the absence of surface stress from the cold twisting process.

There are several attributes that knowledgeable customers appreciate about Rajuri 500 Bars. In addition to ductility and anti-corrosive properties, these are:

500 Property 1

Weldability:

With Rajuri 500 Bars, the weld joints stay strong because the steel has a carbon content less than 0.25%, making it suitable for butt and other weld joints. Manual arc welding also is easier as pre-heating and post heating are not required.

500 Property 2

Fire Resistance:

Rajuri 500 Bars are particularly recommended for areas where higher temperatures ( 400 to 600 deg. C) are likely such as in chimneys. They have the required thermal stability unlike Torsteel and CTD bars.

500 Property 3

Earthquake Resistance:

The higher ductility of a RAJURI 500 Bar makes it better resistant to quakes.

500 Property 4

Formability:

The excellent workability of a Rajuri 500 Bar is on account of its high elongation values and its consistency properties all along the bar’s length.

500 Property 5

Strain Ageing:

With a rigorous quality inspection process in place, RAJURI 500 Bars achieve a chemical composition whereby they show no tendency of embrittlement either during welding or cold deformation of welded joints.

500 Property 6

Cost Effective:

RAJURI 500 Bars bring down your steel consumption by 15-20% and they cost about 5% more than CTD bars, thus they yield an overall saving of 10-15%.

500 Property 7

Excellent Bond Strength:

True strength of a structure to bear both compressive as well as tensile load is a result of the steel and the concrete bonding together. The greater rib area in a Rajuri 500 bar enables it to grip the concrete with a larger contact area. The result is excellent bond strength.

Chemical composition of RAJURI STEELS 500
Element RAJURI 500 IS-1786 : 2008
% C 0.16 to 0.25 0.30 max.
% S 0.050  max. 0.055 max.
% P 0.050 max 0.055 max.
% S+P 0.100 max 0.105 max.

Dia of Mandrel For Re-Bending
Size of Bar (in mm) IS 1786: 2008 (Grade Fe-500) RAJURI 500
8 5ɸ 4ɸ
10 5ɸ 4ɸ
12 7ɸ 5ɸ
16 7ɸ 5ɸ
20 7ɸ 5ɸ
25 7ɸ 5ɸ
28 7ɸ 5ɸ
32 7ɸ 5ɸ

ɸ = Diameter Of The Test Piece ( Bar in mm )

Dia of Mandrel For Bending
Size of Bar (in mm) IS 1786: 2008 (Grade Fe-500) RAJURI 500
8 4ɸ 3ɸ
10 4ɸ 3ɸ
12 4ɸ 3ɸ
16 4ɸ 3ɸ
20 4ɸ 3ɸ
25 5ɸ 3ɸ
28 5ɸ 3ɸ
32 5ɸ 3ɸ

ɸ = Diameter Of The Test Piece ( Bar in mm )
